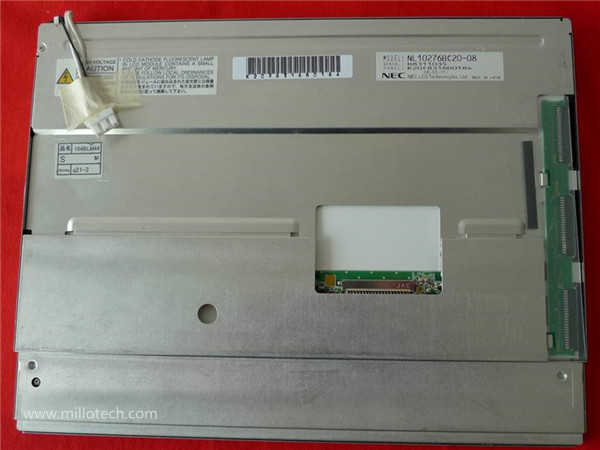

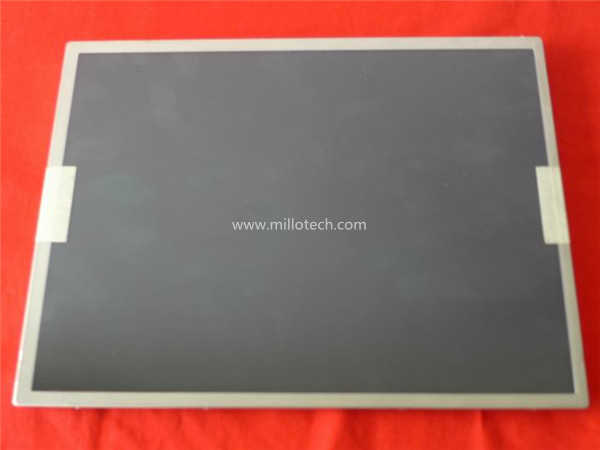

NL10276BC20-08
Size:  10.4
MFG:  NEC
Resolution:  1024 x 768
Backlight:  CCFL
Brightness:  300
Interface:  LVDS
Overall Size(mm):  227.0 x 174.5 x 10.5
A.A(mm):  210.4 x 157.8
Operation Temp:  0℃~55℃
PDF:   NL10276BC20-08.pdf
Features:  Clear

Back

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	10.4	NL6448AC33-24	NEC	640 x 480	CCFL	190	RGB	243.0 x 185.1 x 11.0	211.2 x 158.4	0℃~50℃
	10.4	NL6448AC33-29	NEC	640 x 480	CCFL	250	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	0℃~50℃
	10.4	NL6448AC33-27	NEC	640 x 480	CCFL	250	RGB	243.0 x 185.1 x 11.0	211.2 x 158.4	0℃~50℃
	10.4	NL6448BC33-31	NEC	640 x 480	CCFL	350	RGB	243.0 x 185.1 x 10.8	211.2 x 158.4	0℃~50℃
	10.4	NL6448BC33-46	NEC	640 x 480	CCFL	350	RGB	243.0 x 185.1 x 11.0	211.2 x 158.4	0℃~65℃
	10.4	NL6448BC33-53	NEC	640 x 480	CCFL	380	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-10℃~70℃
	10.4	NL6448BC33-59	NEC	640 x 480	CCFL	450	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-10℃~70℃
	10.4	NL6448BC33-63D	NEC	640 x 480	CCFL	450	LVDS	243.0 x 185.1 x 10.5	211.2 x 158.4	-20℃~70℃
	10.4	NL6448BC33-64	NEC	640 x 480	CCFL	450	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-20℃~70℃
	10.4	NL6448BC33-70F	NEC	640 x 480	WLED	900	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-30℃~80℃
	10.4	NL8060BC26-17	NEC	800 x 600	CCFL	250	RGB	243.0 x 185.1 x 11.5	211.2 x 158.4	0℃~50℃
	10.4	NL10276BC20-04	NEC	1024 x 768	CCFL	300	LVDS	243.0 x 185.1 x 11.0	210.4 x 157.8	0℃~60℃

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	10.4	LTD104KA1S	Thoshiba	1024 x 768	CCFL	170	LVDS	238.6 x 173.2 x 6.8	211.2 x 158.4	0℃~50℃
	10.4	NL10276BC20-04	NEC	1024 x 768	CCFL	300	LVDS	243.0 x 185.1 x 11.0	210.4 x 157.8	0℃~60℃
	10.4	G104XVN01.0	AUO	1024 x 768	WLED	400				-30℃~80℃
	10.4	G104X1-L01	Innolux	1024 x 768	CCFL	400	LVDS	225.5 x 176.3 x 10.2	210.4 x 157.8	-30℃~80℃
	10.4	G104X1-L03	Innolux	1024 x 768	WLED	350	LVDS	238.6 x 175.8 x 7.5	210.4 x 157.8	-30℃~80℃
	10.4	G104X1-L04	Innolux	1024 x 768	WLED	500	LVDS	225.5 x 176.3 x 8.7	210.4 x 157.8	-30℃~80℃
