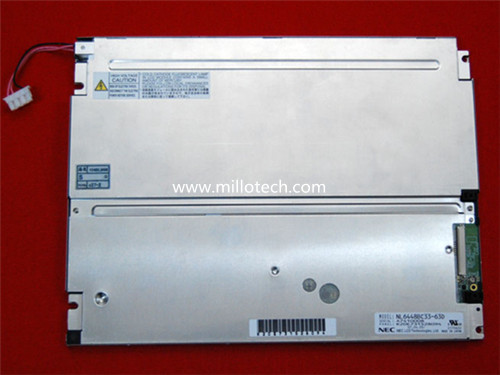

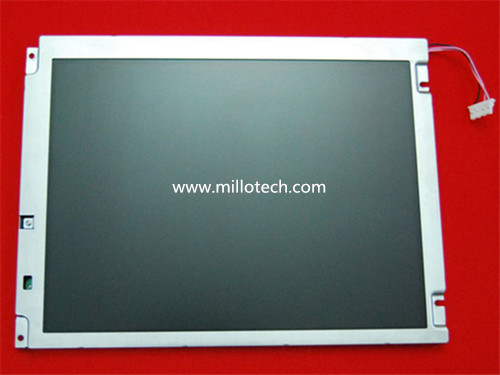

NL6448BC33-63D
Size:  10.4
MFG:  NEC
Resolution:  640 x 480
Backlight:  CCFL
Brightness:  450
Interface:  LVDS
Overall Size(mm):  243.0 x 185.1 x 10.5
A.A(mm):  211.2 x 158.4
Operation Temp:  -20℃~70℃
PDF:   NL6448BC33-63D.pdf
Features:  Anti-glare, wide view angle

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	10.4	NL6448AC33-24	NEC	640 x 480	CCFL	190	RGB	243.0 x 185.1 x 11.0	211.2 x 158.4	0℃~50℃
	10.4	NL6448AC33-29	NEC	640 x 480	CCFL	250	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	0℃~50℃
	10.4	NL6448AC33-27	NEC	640 x 480	CCFL	250	RGB	243.0 x 185.1 x 11.0	211.2 x 158.4	0℃~50℃
	10.4	NL6448BC33-31	NEC	640 x 480	CCFL	350	RGB	243.0 x 185.1 x 10.8	211.2 x 158.4	0℃~50℃
	10.4	NL6448BC33-46	NEC	640 x 480	CCFL	350	RGB	243.0 x 185.1 x 11.0	211.2 x 158.4	0℃~65℃
	10.4	NL6448BC33-53	NEC	640 x 480	CCFL	380	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-10℃~70℃
	10.4	NL6448BC33-59	NEC	640 x 480	CCFL	450	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-10℃~70℃
	10.4	NL6448BC33-64	NEC	640 x 480	CCFL	450	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-20℃~70℃
	10.4	NL6448BC33-70F	NEC	640 x 480	WLED	900	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-30℃~80℃
	10.4	NL8060BC26-17	NEC	800 x 600	CCFL	250	RGB	243.0 x 185.1 x 11.5	211.2 x 158.4	0℃~50℃
	10.4	NL10276BC20-04	NEC	1024 x 768	CCFL	300	LVDS	243.0 x 185.1 x 11.0	210.4 x 157.8	0℃~60℃
	10.4	NL10276BC20-08	NEC	1024 x 768	CCFL	300	LVDS	227.0 x 174.5 x 10.5	210.4 x 157.8	0℃~55℃

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	10.4	AA104VB02	MIT	640 x 480	CCFL	400	CMOS	243.0 x 181.6 x 12.2	211.2 x 158.4	0℃~50℃
	10.4	AA104VB04	MIT	640 x 480	CCFL	400	CMOS	243.0 x 181.6 x 12.2	211.2 x 158.4	0℃~50℃
	10.4	AA104VC02	MIT	640 x 480	CCFL	430	CMOS	243.0 x 181.6 x 12.2	211.2 x 158.4	-20℃~70℃
	10.4	AA104VH01	MIT	640 x 480	WLED	800	TTL	241.0 x 180.2 x 10.5	211.2 x 158.4	-20℃~70℃
	10.4	LQ104V1DG21	SHARP	640 x 480	CCFL	350	RGB	265.0 x 195.0 x 11.5	211.2 x 158.4	-10℃~65℃
	10.4	LQ104V1DG51	SHARP	640 x 480	CCFL	350	RGB	246.5 x 179.4 x 14.2	211.2 x 158.4	-10℃~65℃
	10.4	LQ104V1DG61	SHARP	640 x 480	CCFL	450	RGB	246.5 x 179.4 x 13.7	211.2 x 158.4	-30℃~80℃
	10.4	LQ10D368	SHARP	640 x 480	CCFL	200	RGB	246.5 x 179.4 x 11.0	211.2 x 158.4	-10℃~65℃
	10.4	NL6448AC33-24	NEC	640 x 480	CCFL	190	RGB	243.0 x 185.1 x 11.0	211.2 x 158.4	0℃~50℃
	10.4	NL6448AC33-29	NEC	640 x 480	CCFL	250	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	0℃~50℃
	10.4	NL6448AC33-27	NEC	640 x 480	CCFL	250	RGB	243.0 x 185.1 x 11.0	211.2 x 158.4	0℃~50℃
	10.4	NL6448BC33-31	NEC	640 x 480	CCFL	350	RGB	243.0 x 185.1 x 10.8	211.2 x 158.4	0℃~50℃
	10.4	NL6448BC33-46	NEC	640 x 480	CCFL	350	RGB	243.0 x 185.1 x 11.0	211.2 x 158.4	0℃~65℃
	10.4	NL6448BC33-53	NEC	640 x 480	CCFL	380	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-10℃~70℃
	10.4	NL6448BC33-59	NEC	640 x 480	CCFL	450	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-10℃~70℃
	10.4	NL6448BC33-64	NEC	640 x 480	CCFL	450	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-20℃~70℃
	10.4	NL6448BC33-70F	NEC	640 x 480	WLED	900	RGB	243.0 x 185.1 x 10.5	211.2 x 158.4	-30℃~80℃
	10.4	G104VN01 V0	AUO	640 x 480	CCFL	450	TTL	243.0 x 176.6 x 11.5	211.2 x 158.4	-30℃~80℃
	10.4	G104VN01 V1	AUO	640 x 480	CCFL	450	LVDS	243.0 x 176.6 x 8.0	211.2 x 158.4	-30℃~85℃
	10.4	G104V1-T01	Innolux	640 x 480	CCFL	450	TTL	225.5 x 176.3 x 9.5	211.2 x 158.4	-20℃~70℃
	10.4	G104V1-T03	Innolux	640 x 480	WLED	500	TTL	225.5 x 176.3 x 7.8	211.2 x 158.4	-30℃~80℃
	10.4	LTM10C209A	Thoshiba	640 x 480	CCFL	250	RGB	265.0 x 188.8 x 12.0	211.2 x 158.4	0℃~50℃
	10.4	LTD104C11S	Thoshiba	640 x 480	CCFL	400	RGB	238.5 x 177.5 x 12.0	211.2 x 158.4	-10℃~65℃
