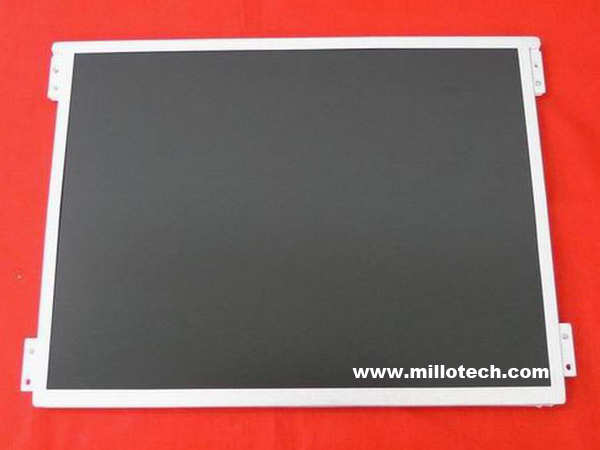

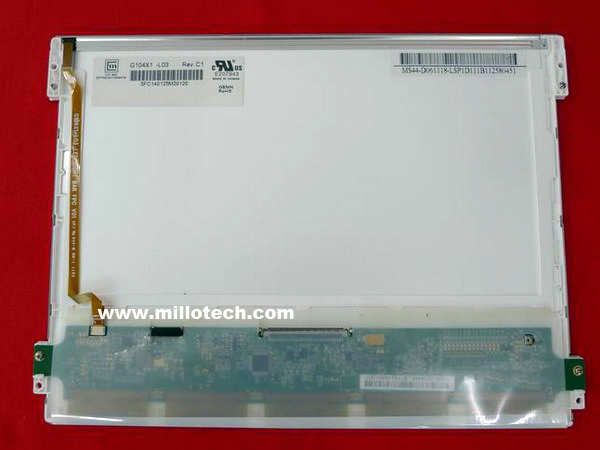

G104X1-L03
Size:  10.4
MFG:  Innolux
Resolution:  1024 x 768
Backlight:  WLED
Brightness:  350
Interface:  LVDS
Overall Size(mm):  238.6 x 175.8 x 7.5
A.A(mm):  210.4 x 157.8
Operation Temp:  -30℃~80℃
PDF:   G104X1-L03.pdf
Features:  Anti-glare, wide view angle

Back

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	10.4	G104V1-T01	Innolux	640 x 480	CCFL	450	TTL	225.5 x 176.3 x 9.5	211.2 x 158.4	-20℃~70℃
	10.4	G104V1-T03	Innolux	640 x 480	WLED	500	TTL	225.5 x 176.3 x 7.8	211.2 x 158.4	-30℃~80℃
	10.4	LSA40AT9001 V2	Innolux	800 x 600	WLED	250	RGB	228.4 x 175.4 x 5.9	211.2 x 158.4	-30℃~85℃
	10.4	G104S1-L01	Innolux	800 x 600	WLED	400	LVDS	243.0 x 184.0 x 6.7	211.2 x 158.4	-30℃~70℃
	10.4	G104AGE-L02	Innolux	800 x 600	WLED	400	LVDS	243.0 x 184.0 x 8.0	211.2 x 158.4	-30℃~85℃
	10.4	G104AGE-L02	Innolux	800 x 600	WLED	400	LVDS	243.0 x 184.0 x 8.0	211.2 x 158.4	-30℃~85℃
	10.4	G104X1-L01	Innolux	1024 x 768	CCFL	400	LVDS	225.5 x 176.3 x 10.2	210.4 x 157.8	-30℃~80℃
	10.4	G104X1-L04	Innolux	1024 x 768	WLED	500	LVDS	225.5 x 176.3 x 8.7	210.4 x 157.8	-30℃~80℃

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	10.4	LTD104KA1S	Thoshiba	1024 x 768	CCFL	170	LVDS	238.6 x 173.2 x 6.8	211.2 x 158.4	0℃~50℃
	10.4	NL10276BC20-04	NEC	1024 x 768	CCFL	300	LVDS	243.0 x 185.1 x 11.0	210.4 x 157.8	0℃~60℃
	10.4	NL10276BC20-08	NEC	1024 x 768	CCFL	300	LVDS	227.0 x 174.5 x 10.5	210.4 x 157.8	0℃~55℃
	10.4	G104XVN01.0	AUO	1024 x 768	WLED	400				-30℃~80℃
	10.4	G104X1-L01	Innolux	1024 x 768	CCFL	400	LVDS	225.5 x 176.3 x 10.2	210.4 x 157.8	-30℃~80℃
	10.4	G104X1-L04	Innolux	1024 x 768	WLED	500	LVDS	225.5 x 176.3 x 8.7	210.4 x 157.8	-30℃~80℃
