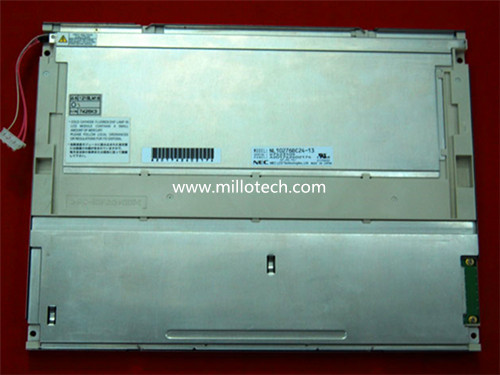

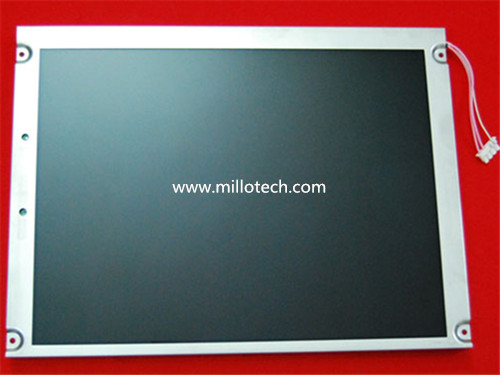

NL10276BC24-13
Size:  12.1
MFG:  NEC
Resolution:  1024 x 768
Backlight:  CCFL
Brightness:  350
Interface:  LVDS
Overall Size(mm):  280.0 x 210.0 x 13.0
A.A(mm):  245.8 x 184.3
Operation Temp:  -10℃~70℃
PDF:   NL10276BC24-13.pdf
Features:  Clear,high brightness

Back

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	12.1	NL8060BC31-17	NEC	800 x 600	CCFL	350	RGB	280.0 x 210.0 x 13.0	246.0 x 184.5	0℃~50℃
	12.1	NL8060BC31-27	NEC	800 x 600	CCFL	400	RGB	280.0 x 210.0 x 13.0	246.0 x 184.5	-10℃~70℃
	12.1	NL8060BC31-28D	NEC	800 x 600	CCFL	350	LVDS	280.0 x 210.0 x 13.0	246.0 x 184.5	-10℃~70℃
	12.1	NL10276AC24-02	NEC	1024 x 768	CCFL	200	RGB	290.0 x 225.0 x 17.0	245.8 x 184.3	0℃~50℃

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	12.1	NL10276AC24-02	NEC	1024 x 768	CCFL	200	RGB	290.0 x 225.0 x 17.0	245.8 x 184.3	0℃~50℃
	12.1	G121XN01 V0	AUO	1024 x 768	WLED	500	LVDS	279.0 x 209.0 x 9.0	245.8 x 184.3	-30℃~80℃
	12.1	G121X1-L01	Innolux	1024 x 768	CCFL	450	LVDS	260.5 x 204.0 x 12.2	245.8 x 184.3	-30℃~70℃
	12.1	G121X1-L02	Innolux	1024 x 768	CCFL	450	LVDS	260.5 x 204.0 x 12.2	245.8 x 184.3	-30℃~80℃
	12.1	G121X1-L03	Innolux	1024 x 768	WLED	600	LVDS	260.5 x 204.0 x 8.5	245.8 x 184.3	-30℃~80℃
	12.1	G121X1-L04	Innolux	1024 x 768	WLED	500	LVDS	260.5 x 204.0 x 7.2	245.8 x 184.3	-30℃~70℃
	12.1	AA121XH01	MIT	1024 x 768	CCFL	320	LVDS	280.0 x 210.0 x 12.0	245.8 x 184.3	0℃~60℃
	12.1	AA121XK04	MIT	1024 x 768	WLED	420	LVDS	280.0 x 210.0 x 12.0	245.8 x 184.3	-30℃~80℃
