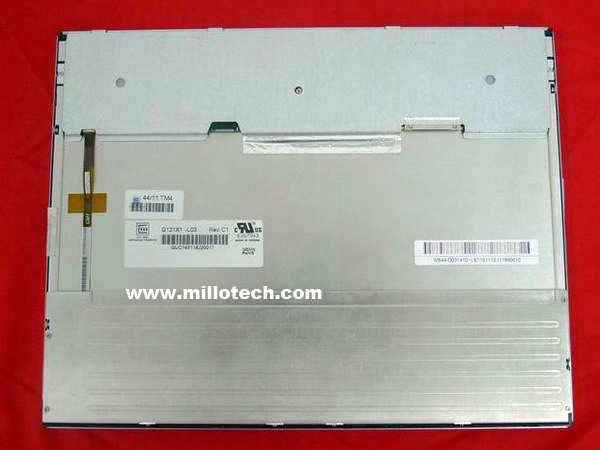

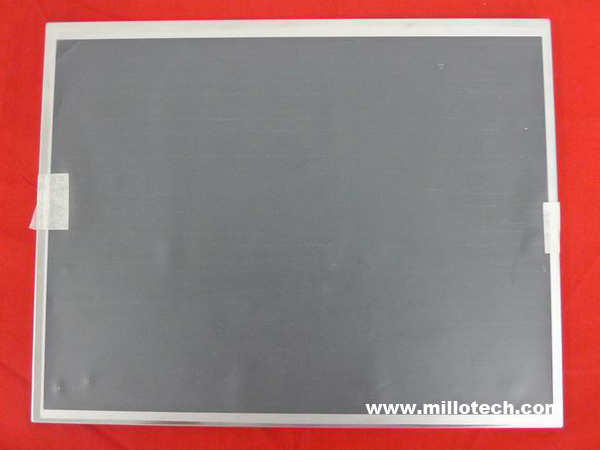

G121X1-L03
Size:  12.1
MFG:  Innolux
Resolution:  1024 x 768
Backlight:  WLED
Brightness:  600
Interface:  LVDS
Overall Size(mm):  260.5 x 204.0 x 8.5
A.A(mm):  245.8 x 184.3
Operation Temp:  -30℃~80℃
PDF:   G121X1-L03.pdf
Features:  Sunlight readable, ultra bright

Back

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	12.1	G121S1-L01	Innolux	800 x 600	CCFL	450	LVDS	260.5 x 204.0 x 12.2	246.0 x 184.5	-30℃~70℃
	12.1	G121AGE-L03	Innolux	800 x 600	WLED	450	LVDS	260.5 x 204.0 x 8.4	246.0 x 184.5	-30℃~85℃
	12.1	G121S1-L02	Innolux	800 x 600	WLED	500	LVDS	260.5 x 204.0 x 8.4	246.0 x 184.5	-30℃~80℃
	12.1	G121X1-L01	Innolux	1024 x 768	CCFL	450	LVDS	260.5 x 204.0 x 12.2	245.8 x 184.3	-30℃~70℃
	12.1	G121X1-L02	Innolux	1024 x 768	CCFL	450	LVDS	260.5 x 204.0 x 12.2	245.8 x 184.3	-30℃~80℃
	12.1	G121X1-L04	Innolux	1024 x 768	WLED	500	LVDS	260.5 x 204.0 x 7.2	245.8 x 184.3	-30℃~70℃
	12.1	G121L1-L01	Innolux	1280 x 800	WLED	400	LVDS	278.0 x 184.0 x 8.2	261.1 x 163.2	-10℃~70℃

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	12.1	NL10276AC24-02	NEC	1024 x 768	CCFL	200	RGB	290.0 x 225.0 x 17.0	245.8 x 184.3	0℃~50℃
	12.1	NL10276BC24-13	NEC	1024 x 768	CCFL	350	LVDS	280.0 x 210.0 x 13.0	245.8 x 184.3	-10℃~70℃
	12.1	G121XN01 V0	AUO	1024 x 768	WLED	500	LVDS	279.0 x 209.0 x 9.0	245.8 x 184.3	-30℃~80℃
	12.1	G121X1-L01	Innolux	1024 x 768	CCFL	450	LVDS	260.5 x 204.0 x 12.2	245.8 x 184.3	-30℃~70℃
	12.1	G121X1-L02	Innolux	1024 x 768	CCFL	450	LVDS	260.5 x 204.0 x 12.2	245.8 x 184.3	-30℃~80℃
	12.1	G121X1-L04	Innolux	1024 x 768	WLED	500	LVDS	260.5 x 204.0 x 7.2	245.8 x 184.3	-30℃~70℃
	12.1	AA121XH01	MIT	1024 x 768	CCFL	320	LVDS	280.0 x 210.0 x 12.0	245.8 x 184.3	0℃~60℃
	12.1	AA121XK04	MIT	1024 x 768	WLED	420	LVDS	280.0 x 210.0 x 12.0	245.8 x 184.3	-30℃~80℃
