AT070TN92,TFT Displays,LCD parts, LCD for industrial, LCD Modules, STN, TFT, Color STN, EL display, Display>

Product category

BackHome - LCD Displays - TFT Displays - AT070TN92

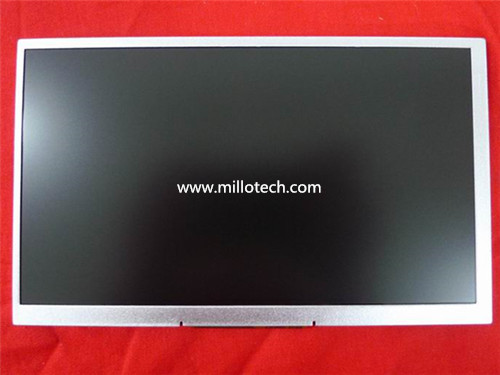

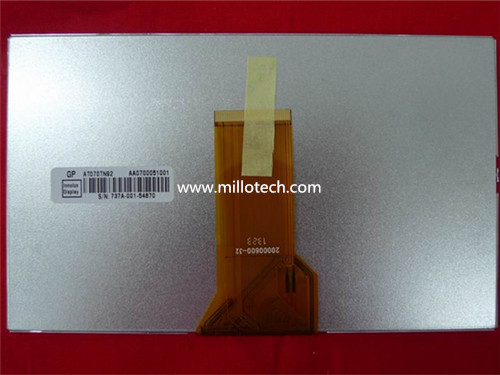

AT070TN92
Size:  7.0
MFG:  Innolux
Resolution:  800 x 480
Backlight:  WLED
Brightness:  250
Interface:  RGB
Overall Size(mm):  164.9 x 100.0 x 5.7
A.A(mm):  154.1 x 85.9
Operation Temp:  -20℃~70℃
PDF:   AT070TN92.pdf
Features:  Anti-glare, wide view angle

Back

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	7.0	AT070TN83 V.1	Innolux	800 x 480	WLED	300	TTL	165.0 x 104.0 x 5.5	152.4 x 91.4	-20℃~70℃
	7.0	G070Y2-L01	Innolux	800 x 480	WLED	500	LVDS	165.0 x 104.0 x 9.5	152.4 x 91.4	-30℃~85℃
	7.0	G070Y2-T02	Innolux	800 x 480	WLED	500	RGB	165.0 x 104.0 x 6.3	152.4 x 91.4	-30℃~85℃
	7.0	G070Y3-T01	Innolux	800 x 480	WLED	600	RGB	168.0 x 94.0 x 5.7	156.0 x 82.8	-30℃~85℃

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	7.0	G070VW01 V0	AUO	800 x 480	WLED	400	LVDS	170.0 x 111.0 x 7.5	152.4 x 91.4	-30℃~85℃
	7.0	G070VW01 V1	AUO	800 x 480	WLED	350	LVDS	170.0 x 111.0 x 8.0	152.4 x 91.4	-20℃~70℃
	7.0	A070VW08 V2	AUO	800 x 480	WLED	500	RGB	165.0 x 104.0 x 5.1	152.4 x 91.4	-20℃~70℃
	7.0	AT070TN83 V.1	Innolux	800 x 480	WLED	300	TTL	165.0 x 104.0 x 5.5	152.4 x 91.4	-20℃~70℃
	7.0	G070Y2-L01	Innolux	800 x 480	WLED	500	LVDS	165.0 x 104.0 x 9.5	152.4 x 91.4	-30℃~85℃
	7.0	G070Y2-T02	Innolux	800 x 480	WLED	500	RGB	165.0 x 104.0 x 6.3	152.4 x 91.4	-30℃~85℃
	7.0	G070Y3-T01	Innolux	800 x 480	WLED	600	RGB	168.0 x 94.0 x 5.7	156.0 x 82.8	-30℃~85℃
