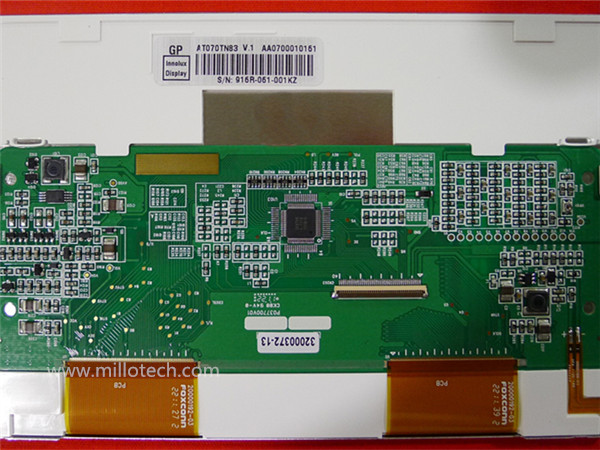

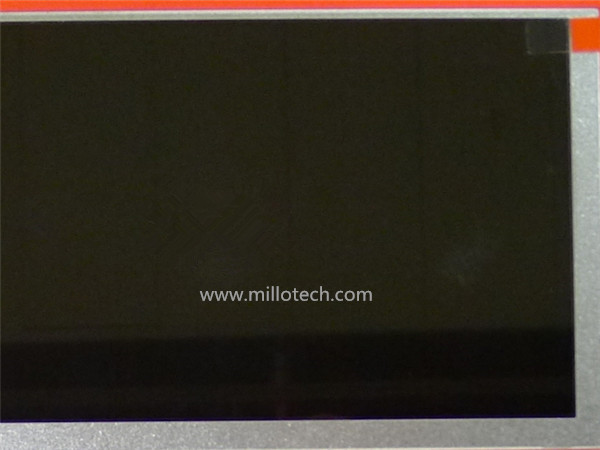

AT070TN83 V.1
Size:  7.0
MFG:  Innolux
Resolution:  800 x 480
Backlight:  WLED
Brightness:  300
Interface:  TTL
Overall Size(mm):  165.0 x 104.0 x 5.5
A.A(mm):  152.4 x 91.4
Operation Temp:  -20℃~70℃
PDF:   AT070TN83-V1.pdf
Features:  Built-in T-Con & LED driver

Back

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	7.0	AT070TN92	Innolux	800 x 480	WLED	250	RGB	164.9 x 100.0 x 5.7	154.1 x 85.9	-20℃~70℃
	7.0	G070Y2-L01	Innolux	800 x 480	WLED	500	LVDS	165.0 x 104.0 x 9.5	152.4 x 91.4	-30℃~85℃
	7.0	G070Y2-T02	Innolux	800 x 480	WLED	500	RGB	165.0 x 104.0 x 6.3	152.4 x 91.4	-30℃~85℃
	7.0	G070Y3-T01	Innolux	800 x 480	WLED	600	RGB	168.0 x 94.0 x 5.7	156.0 x 82.8	-30℃~85℃

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	7.0	G070VW01 V0	AUO	800 x 480	WLED	400	LVDS	170.0 x 111.0 x 7.5	152.4 x 91.4	-30℃~85℃
	7.0	G070VW01 V1	AUO	800 x 480	WLED	350	LVDS	170.0 x 111.0 x 8.0	152.4 x 91.4	-20℃~70℃
	7.0	A070VW08 V2	AUO	800 x 480	WLED	500	RGB	165.0 x 104.0 x 5.1	152.4 x 91.4	-20℃~70℃
	7.0	AT070TN92	Innolux	800 x 480	WLED	250	RGB	164.9 x 100.0 x 5.7	154.1 x 85.9	-20℃~70℃
	7.0	G070Y2-L01	Innolux	800 x 480	WLED	500	LVDS	165.0 x 104.0 x 9.5	152.4 x 91.4	-30℃~85℃
	7.0	G070Y2-T02	Innolux	800 x 480	WLED	500	RGB	165.0 x 104.0 x 6.3	152.4 x 91.4	-30℃~85℃
	7.0	G070Y3-T01	Innolux	800 x 480	WLED	600	RGB	168.0 x 94.0 x 5.7	156.0 x 82.8	-30℃~85℃
