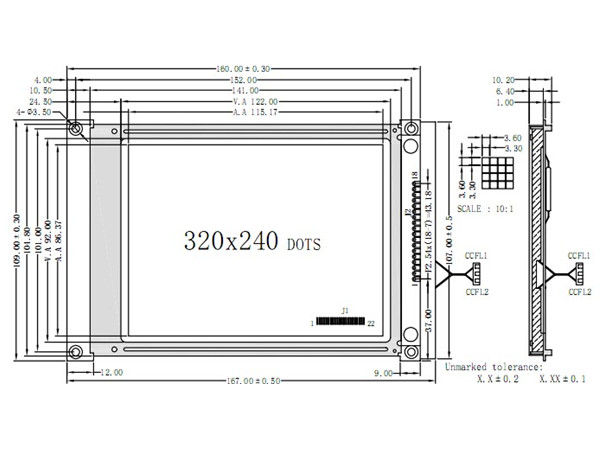

ZL320240A4
Dots :  320 × 240
Module Size(mm):  167.0 x 109.0
Dot Size(mm):  0.33 x 0.33
Dot Pitch(mm):  0.36 x 0.36
V.A.(mm):  122.0 x 92.0
Assem. Size(mm):  152.0 x 101.0
Controller:  SED1335
PDF:   ZL320240A4.pdf
Features:  STN, FSTN display modes optional

Back

Select	Dots	Part No	Module Size(mm)	Dot Size(mm)	Dot Pitch(mm)	V.A.(mm)	Assem. Size(mm)	Controller
	320 × 240	ZL320240A1	167.0 x 109.0	0.33 x 0.33	0.36 x 0.36	122.0 x 92.0	152.0 x 101.0	SED1335
	320 × 240	ZL320240A2	167.0 x 109.0	0.33 x 0.33	0.36 x 0.36	122.0 x 92.0	152.0 x 101.0	SED1335
	320 × 240	ZL320240A3	167.0 x 109.0	0.33 x 0.33	0.36 x 0.36	122.0 x 92.0	152.0 x 101.0	SED1335
	320 × 240	ZL320240B1	161.0 x 97.3	0.27 x 0.27	0.30 x 0.30	104.0 x 79.3	153.4 x 85.3	SED1335
	320 × 240	ZL320240B2	143.0 x 97.0	0.27 x 0.27	0.30 x 0.30	104.0 x 79.3	135.0 x 88.0	SED1335
	320 × 240	ZL320240B4	139.6 x 107.0	0.27 x 0.27	0.30 x 0.30	104.0 x 79.3	131.8 x 92.0	SED1335
	320 × 240	ZL320240C1	93.6 x 88.0	0.23 x 0.23	0.24 x 0.24	78.6 x 60.0	85.6 x 80.0	SED1335
	320 × 240	ZL320240C1CFE	87.3 x 67.4	0.23 x 0.23	0.24 x 0.24	78.6 x 60.0	----	----
	320 × 240	ZL320240C2	110.0 x 78.0	0.23 x 0.23	0.24 x 0.24	78.6 x 60.0	103.0 x 71.0	SED1335
	320 × 240	ZL320240C5	93.6 x 88.0	0.23 x 0.23	0.24 x 0.24	78.6 x 60.0	85.6 x 80.0	SED1335
