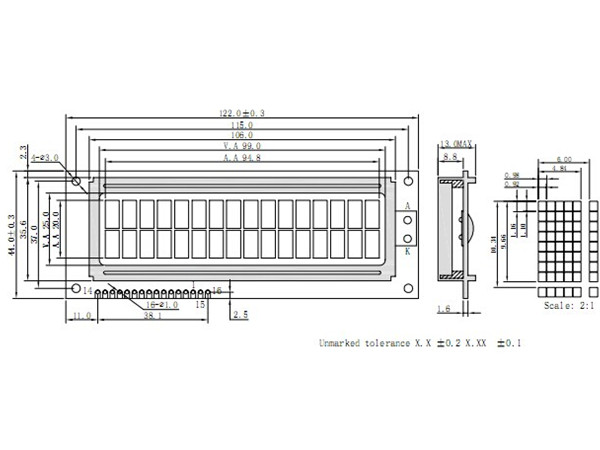

ZL1602A1
Character:  16 × 2
Module Size(mm):  122.0 × 44.0
Char Size(mm):  4.84 x 9.66
Char.Pitch(mm):  6.0 x 10.34
V.A.(mm):  99.0 x 25.0
Assem.Size(mm):  115.0 x 37.0
Controller:  KS0066U
PDF:   ZL1602A1.pdf
Features:  TN, STN, FSTN different display modes optional, different backlight colors optional

Related products:

Back

Select	Character	Module No	Module Size(mm)	Char Size(mm)	Char.Pitch(mm)	V.A.(mm)	Assem.Size(mm)	Controller
	16 × 2	ZL1602B1	85.0 × 36.0	2.95 x 4.35	2.95 x 4.35	64.5 x 13.8	79.5 x 30.5	S6A0069
	16 × 2	ZL1602B2	85.0 × 29.0	2.95 x 4.35	3.65 x 5.05	64.5 x 13.8	81.0 x 24.0	KS0066U
	16 × 2	ZL1602B3	80.0 × 36.0	2.95 x 4.35	3.65 x 5.05	64.5 x 13.8	75.0 x 31.0	KS0070B
	16 × 2	ZL1602B4	85.0 × 29.0	2.95 x 4.35	3.65 x 5.05	64.5 x 13.8	81.0 x 24.0	KS0070B
	16 × 2	ZL1602C1	80.0 × 36.0	2.95 x 5.56	3.55 x 5.94	64.5 x 16.0	75.0 x 31.0	KS0070B
	16 × 2	ZL1602C2	80.0 × 36.0	2.95 x 5.56	3.55 x 5.94	64.5 x 16.0	75.0 x 31.0	S6A0069
	16 × 2	ZL1602D2	85.0 x 30.0	2.95 x 4.35	3.65 x 5.05	65.0 x 17.5	81.0 x 24.0	KS0070B
