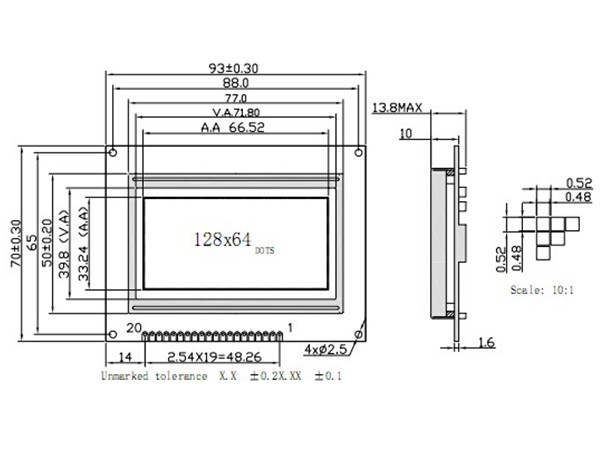

ZL12864G1
Dots :  128 × 64
Module Size(mm):  93.0 x 70.0
Dot Size(mm):  0.48 x 0.48
Dot Pitch(mm):  0.52 x 0.52
V.A.(mm):  71.8 x 39.8
Assem. Size(mm):  88.0 x 65.0
Controller:  KS0108B
PDF:   ZL12864G1.pdf
Features:  STN, FSTN display modes optional

Related products:

Back

Select	Dots	Part No	Module Size(mm)	Dot Size(mm)	Dot Pitch(mm)	V.A.(mm)	Assem. Size(mm)	Controller
	128 × 64	ZL12864A1	93.0 x 70.0	0.48 x 0.48	0.52 x 0.52	70.8 x 38.8	88.0 x 65.0	S6B0108B
	128 × 64	ZL12864B2	113.0 x 65.0	0.46 x 0.46	0.51 x 0.51	73.4 x 38.8	105.0 x 53.0	S6B0108B
	128 × 64	ZL12864C1	78.0 x 70.0	0.40 x 0.56	0.44 x 0.60	62.0 x 44.0	68.0 x 64.6	S6B0108B
	128 × 64	ZL12864C2	78.0 x 70.0	0.40 x 0.56	0.44 x 0.60	62.0 x 44.0	68.0 x 64.6	T6963C
	128 × 64	ZL12864C3	78.0 x 70.0	0.40 x 0.56	0.44 x 0.60	62.0 x 44.0	68.0 x 64.6	KS0108B
	128 × 64	ZL12864H1	92.0 x 56.0	0.45 × 0.49	0.48 x 0.52	66.5 x 38.0	86.0 x 25.0	S6B0724
	128 × 64	ZL12864K01	93.0 x 70.0	0.48 x 0.48	0.52 x 0.52	72.0 x 40.0	88.0 x 65.0	ST7920
