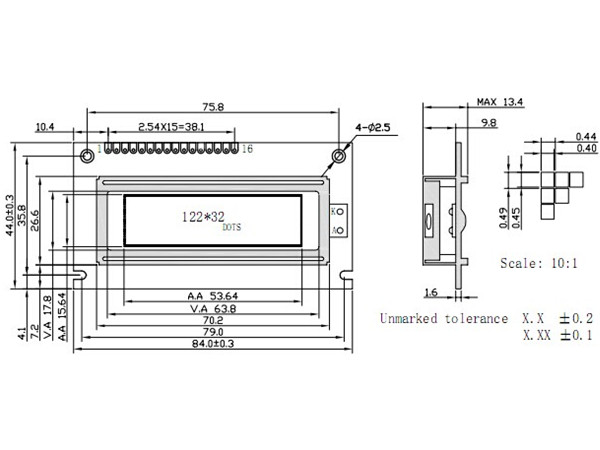

ZL12232B1
Dots :  122 × 32
Module Size(mm):  84.0 x 44.0
Dot Size(mm):  0.40 x 0.45
Dot Pitch(mm):  0.44 x 0.49
V.A.(mm):  63.8 x 17.8
Assem. Size(mm):  75.8 x 35.8
Controller:  ST7920
PDF:   ZL12232B1.pdf
Features:  STN, FSTN display modes optional,built-in Chinese Font

Related products:

Back

Select	Dots	Part No	Module Size(mm)	Dot Size(mm)	Dot Pitch(mm)	V.A.(mm)	Assem. Size(mm)	Controller
	122 × 32	ZL12232A1	76.5 x 27.9	0.36 x 0.41	0.40 x 0.45	60.8 x 17.8	----	SED1520
	122 × 32	ZL12232A2	67.0 x 28.0	0.36 x 0.41	0.40 x 0.45	60.8 x 17.8	----	SED1520
	122 × 32	ZL12232A4	76.5 x 27.9	0.36 x 0.41	0.40 x 0.45	60.8 x 17.8	----	ST7920
	122 × 32	ZL12232C1	65.4 x 29.1	0.36 x 0.41	0.40 x 0.45	54.8 x 18.3	----	SED1520
	122 × 32	ZL12232C2	67.3 x 27.5	0.36 x 0.41	0.40 x 0.45	54.8 x 18.3	----	SED1520
	122 × 32	ZL12232D1	84.0 x 44.0	0.40 x 0.45	0.44 x 0.49	60.5 x 18.5	75.8 x 35.8	SED1520
	122 × 32	ZL12232D3	66.3 x 27.8	0.36 x 0.41	0.40 x 0.45	60.5 x 18.5	----	SED1520
