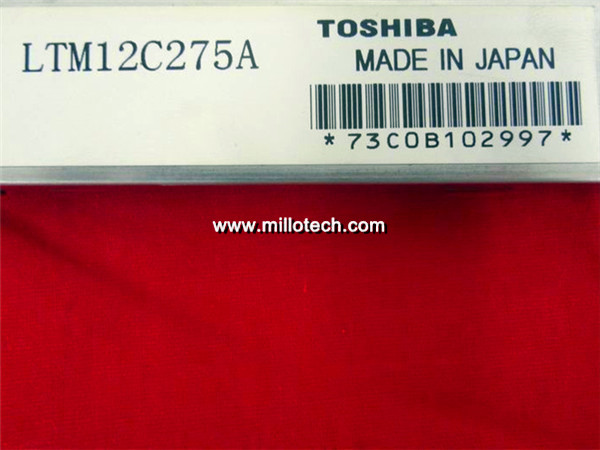

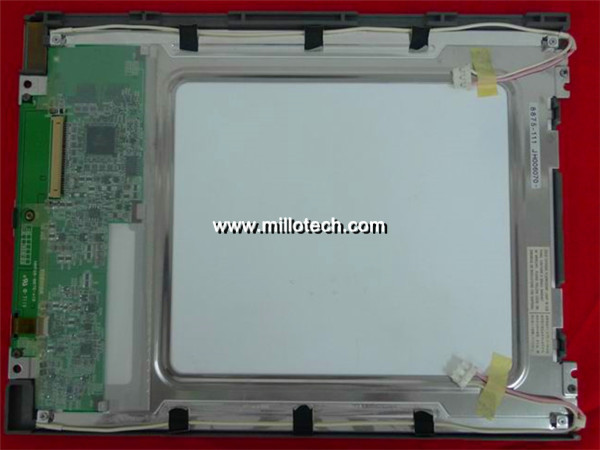

LTM12C275A
Size:  12.1
MFG:  Thoshiba
Resolution:  800 x 600
Backlight:  CCFL
Brightness:  250
Interface:  RGB
Overall Size(mm):  290.0 x 220.0 x 15.0
A.A(mm):  246.0 x 184.5
Operation Temp:  0℃~60℃
PDF:   LTM12C275A.pdf
Features:

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	12.1	LTD121C30S	Thoshiba	800 x 600	CCFL	350	RGB	278.3 x 209.0 x 11.0	246.0 x 184.5	-10℃~65℃
	12.1	LTM12C289	Thoshiba	800 x 600	CCFL	250	RGB	278.3 x 209.0 x 14.0	246.0 x 184.5	0℃~50℃

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	12.1	AA121SL01	MIT	800 x 600	CCFL	400	CMOS	280.0 x 210.0 x 12.0	246.0 x 184.5	-30℃~80℃
	12.1	LQ12S41	SHARP	800 x 600	CCFL	250	RGB	290.0 x 225.0 x 13.2	246.0 x 184.5	0℃~50℃
	12.1	LM12S49	SHARP	800 x 600	CCFL	180	RGB	275.0 x 202.5 x 8.5	246.0 x 184.5	0℃~40℃
	12.1	LQ121S1DG11	SHARP	800 x 600	CCFL	250	RGB	290.0 x 225.0 x 13.2	246.0 x 184.5	0℃~50℃
	12.1	LQ121S1DG21	SHARP	800 x 600	CCFL	300	RGB	276.0 x 209.0 x 14.0	246.0 x 184.5	0℃~50℃
	12.1	LQ121S1DG31	SHARP	800 x 600	CCFL	300	RGB	276.0 x 209.0 x 14.0	246.0 x 184.5	0℃~50℃
	12.1	LQ121S1DG41	SHARP	800 x 600	CCFL	370	RGB	276.0 x 209.0 x 11.0	246.0 x 184.5	-10℃~65℃
	12.1	LQ121S1LG41	SHARP	800 x 600	CCFL	370	LVDS	276.0 x 209.0 x 11.0	246.0 x 184.5	-10℃~65℃
	12.1	G121SN01 V0	AUO	800 x 600	CCFL	400	LVDS	279.0 x 209.0 x 11.0	246.0 x 184.5	-10℃~65℃
	12.1	G121SN01 V1	AUO	800 x 600	CCFL	200	LVDS	279.0 x 209.0 x 11.0	246.0 x 184.5	-10℃~65℃
	12.1	G121SN01 V3	AUO	800 x 600	CCFL	400	LVDS	279.0 x 209.0 x 11.0	246.0 x 184.5	-30℃~85℃
	12.1	G121SN01 V4	AUO	800 x 600	WLED	450	LVDS	279.0 x 209.0 x 9.0	246.0 x 184.5	-30℃~85℃
	12.1	G121STN01.0	AUO	800 x 600	WLED	300	LVDS	279.0 x 209.0 x 9.0	246.0 x 184.5	-30℃~85℃
	12.1	NL8060BC31-17	NEC	800 x 600	CCFL	350	RGB	280.0 x 210.0 x 13.0	246.0 x 184.5	0℃~50℃
	12.1	NL8060BC31-27	NEC	800 x 600	CCFL	400	RGB	280.0 x 210.0 x 13.0	246.0 x 184.5	-10℃~70℃
	12.1	NL8060BC31-28D	NEC	800 x 600	CCFL	350	LVDS	280.0 x 210.0 x 13.0	246.0 x 184.5	-10℃~70℃
	12.1	G121S1-L01	Innolux	800 x 600	CCFL	450	LVDS	260.5 x 204.0 x 12.2	246.0 x 184.5	-30℃~70℃
	12.1	G121AGE-L03	Innolux	800 x 600	WLED	450	LVDS	260.5 x 204.0 x 8.4	246.0 x 184.5	-30℃~85℃
	12.1	G121S1-L02	Innolux	800 x 600	WLED	500	LVDS	260.5 x 204.0 x 8.4	246.0 x 184.5	-30℃~80℃
	12.1	LTD121C30S	Thoshiba	800 x 600	CCFL	350	RGB	278.3 x 209.0 x 11.0	246.0 x 184.5	-10℃~65℃
	12.1	LTM12C289	Thoshiba	800 x 600	CCFL	250	RGB	278.3 x 209.0 x 14.0	246.0 x 184.5	0℃~50℃
	12.1	ML1211	MILLO	800 x 600	296.0 x 230.0 x 50.0	247.0 x 186.0	VGA	Optional
