G084SN03 V.1,TFT Displays,LCD parts, LCD for industrial, LCD Modules, STN, TFT, Color STN, EL display, Display>

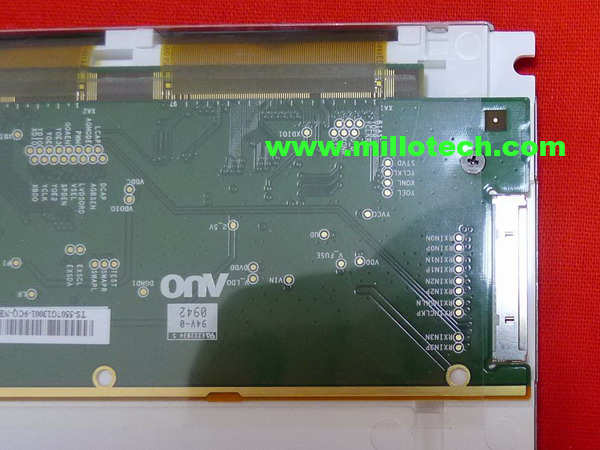

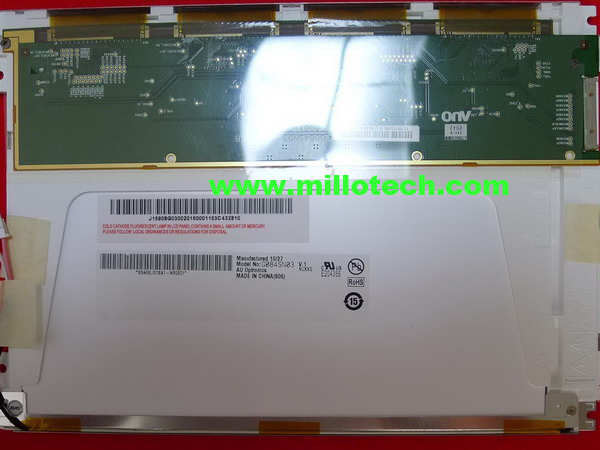

G084SN03 V.1
Size:  8.4
MFG:  AUO
Resolution:  800 x 600
Backlight:  CCFL
Brightness:  250
Interface:  LVDS
Overall Size(mm):  203.0 x 142.5 x 5.7
A.A(mm):  170.4 x 127.8
Operation Temp:  -30℃~85℃
PDF:   G084SN03_V.1.pdf
Features:  Anti-glare, wide view angle

Select	Size	Part NO.	MFG	Resolution	Backlight	Brightness	Interface	Overall Size(mm)	A.A(mm)	Operation Temp
	8.4	NL8060BC21-02	NEC	800 x 600	CCFL	400	LVDS	200.0 x 152.0 x 10.5	170.4 x 127.8	-10℃~70℃
	8.4	NL8060BC21-03	NEC	800 x 600	CCFL	650	LVDS	200.0 x 152.0 x 10.5	170.4 x 127.8	-20℃~70℃
	8.4	NL8060BC21-04	NEC	800 x 600	CCFL	400	RGB	200.0 x 152.0 x 10.5	170.4 x 127.8	-20℃~70℃
	8.4	AA084SA01	MIT	800 x 600	CCFL	400	LVDS	199.5 x 149.0 x 11.5	170.4 x 127.8	-20℃~70℃
	8.4	AA084SB01	MIT	800 x 600	WLED	480	LVDS	199.5 x 149.0 x 13.8	170.4 x 127.8	-20℃~70℃
	8.4	B084SN02 V0	AUO	800 x 600	CCFL	150	LVDS	198.2 x 143.6 x 7.6	170.4 x 127.8	0℃~50℃
	8.4	G084SN03 V3	AUO	800 x 600	WLED	250	LVDS	203.0 x 142.5 x 5.7	170.4 x 127.8	-20℃~70℃
	8.4	G084SN05 V7	AUO	800 x 600	CCFL	450	LVDS	203.0 x 142.5 x 8.0	170.4 x 127.8	-30℃~85℃
	8.4	G084SN05 V8	AUO	800 x 600	WLED	450	LVDS	203.0 x 142.5 x 8.0	170.4 x 127.8	-30℃~85℃
	8.4	G084SN05 V9	AUO	800 x 600	WLED	450	LVDS	203.0 x 142.5 x 8.0	170.4 x 127.8	-30℃~85℃
	8.4	LQ084S3LG01	SHARP	800 x 600	CCFL	400	LVDS	199.5 x 149.0 x 11.6	170.4 x 127.8	-30℃~80℃
	8.4	LQ084S3LG02	SHARP	800 x 600	CCFL	350	LVDS	199.5 x 149.5 x 12.0	170.4 x 127.8	-30℃~80℃
	8.4	LTA084C190F	Thoshiba	800 x 600	CCFL	200	LVDS	203.0 x 143.5 x 8.0	170.4 x 127.8	-10℃~60℃
	8.4	LTA084C270F	Thoshiba	800 x 600	CCFL	400	LVDS	199.5 x 149.5 x 12.0	170.4 x 127.8	-20℃~70℃
	8.4	LTA084C271F	Thoshiba	800 x 600	WLED	400	LVDS	199.5 x 149.5 x 11.5	170.4 x 127.8	-20℃~70℃
	8.4	LTM08C351L	Thoshiba	800 x 600	CCFL	350	LVDS	199.5 x 149.5 x 12.0	170.4 x 127.8	-10℃~60℃
	8.4	LTM08C355S	Thoshiba	800 x 600	CCFL	145	RGB	200.3 x 140.3 x 5.5	170.4 x 127.8	0℃~50℃
	8.4	ML0841	MILLO	800 x 600	220.0 x 165.0 x 47.0	172.1 x 129.5	VGA	Optional
